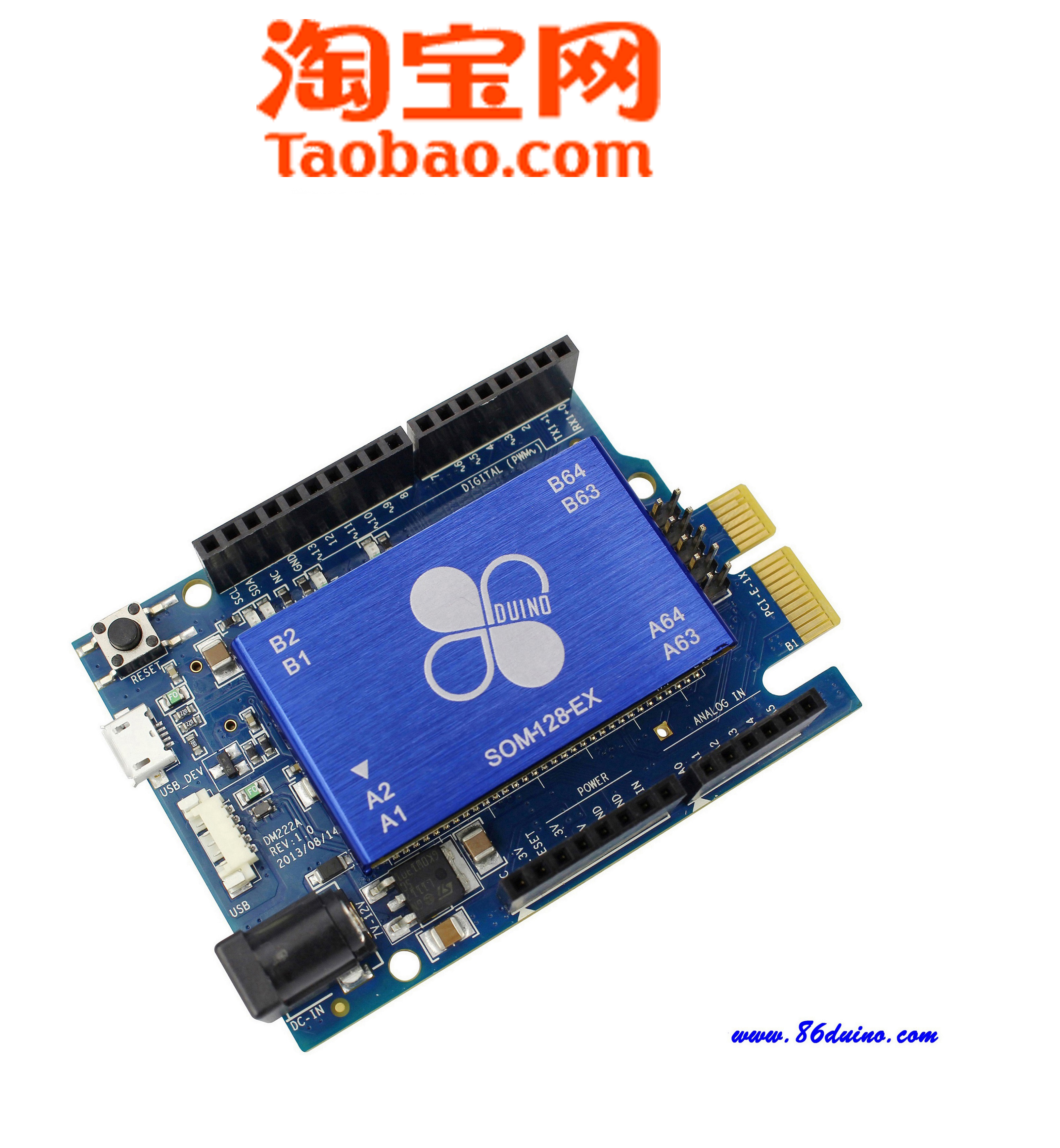

86Duino ZERO

Overview86Duino_ZERO-45DBUY2

● Vortex86EX Processor
300MHz 32-bit x86
128MB/1GB DDR3
LAN
USB 2.0
Micro-SD
● Open-Source Hardware
● Support DOS, Windows, Linux
● Arduino-Compatible IDE
● Arduino “Leonardo” form factor

86Duino为新一代的开放式硬件平台(open-source hardware platform),采用Vortex86EX 处理器,提供更快的处理效能及高扩充性,且完全兼容Arduino系列,并可支持x86架构的操作系统及运行以Arduino为基础的系统。
86Duino采用了高性能32位的x86兼容处理器,可以额外安装Windows、Linux 和最流行的32位RTOS O/S,在单一封装内集成了PCIE,DDR3,ROM控制器,xISA,I2C,SPI,IPC(DMA和中断定时器/计数器包括内部外设控制器),网络,FIFO UART,USB2.0和SD/ SATA控制器形成一个系统级芯片(SOC)。
86Duino 提供了一个超完美的解决方案,开放式的硬件与软件,可自行下载电路图,让使用Arduino及嵌入式系统的艺术家、设计师、业余爱好者、任何有兴趣的人,建立打造交互式科技所需的性能。

Technical Specifications
Processor Vortex86EX
Clock Speed 300 MHz
Memory 128MB industrial-grade DDR3 (86Duino Zero)
1GB industrial-grade DDR3 (86Duino Zero Plus)
Flash Memory 8MB
Digital I/O Pins 17 (of which 7 provide 32bit PWM output)
Analog Input Pins 6 (11bit)
Communication I2C, SPI, UART, LAN
Operating Voltage 5V
Input Voltage (recommended) 7-12V
DC Current per I/O Pin 16 mA
DC Current for 3.3V Pin 400 mA

All features and specifications subject to change without notice.


86Duino_ZERO-45D   86Duino_ZERO-top  86Duino_ZERO-back   86Duino_ZERO-topview    86Duino_Zero-backview     86Duino-ZERO_Pinout_M     86Duino-ZERO_Pinout_M


download

  1. Vortex86EX Datasheet V1.4
  2. Circuits Schematics for DM-205 (Vortex86EX SOM-128-EX)
  3. Circuits Schematics for DM-222 (Daughter Board)
  4. BOM/Part List for DM-222 (Daughter Board)
  5. Gerber file for DM-222 (Daughter Board)
