86Duino ONE

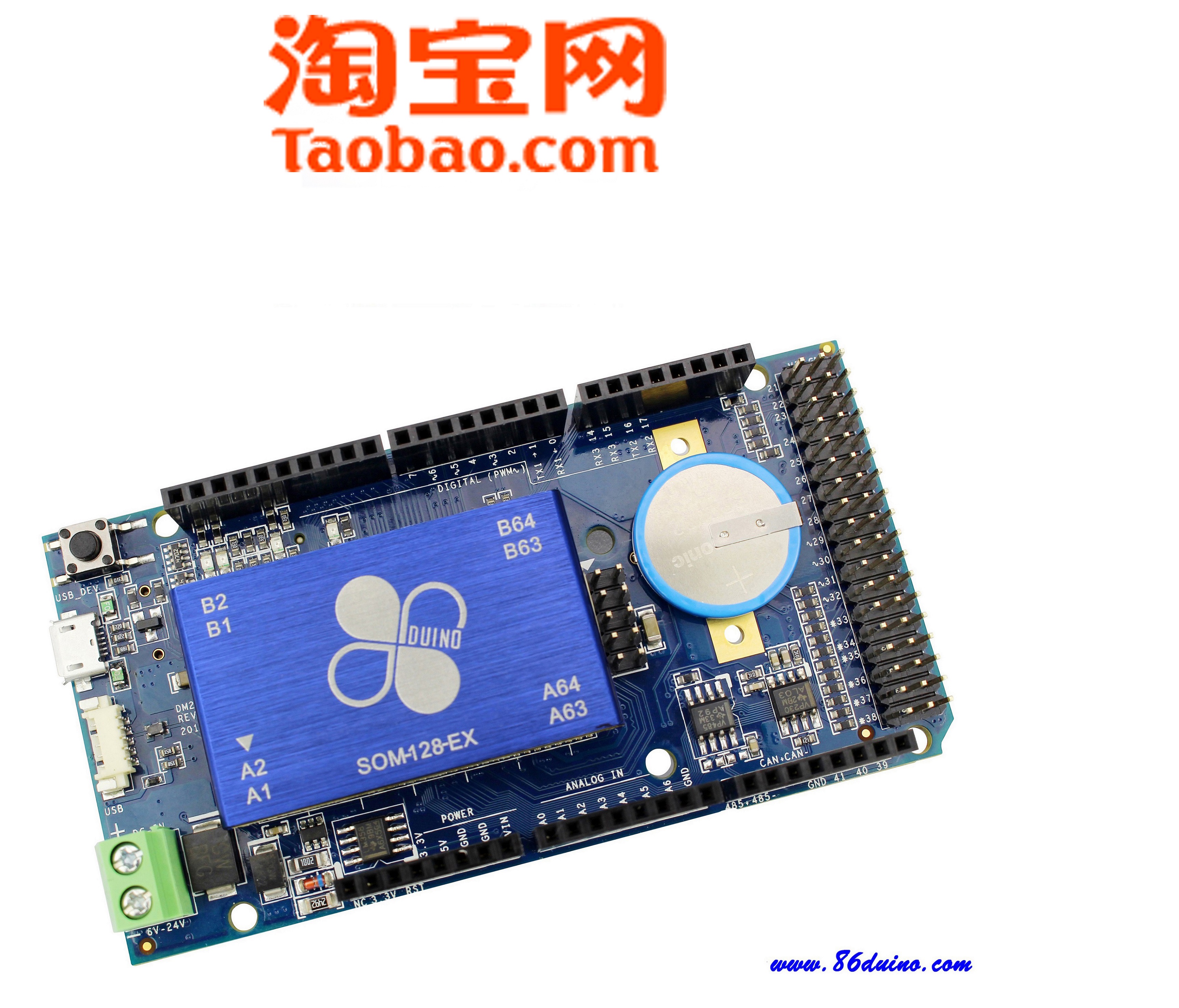

Overview86Duino_ONE-45DBUY

● Vortex86EX Processor
300MHz 32-bit x86
128MB/1GB DDR3
LAN
USB 2.0
Micro-SD
● Open-Source Hardware
● Support DOS, Windows, Linux
● Arduino-Compatible IDE

86Duino为新一代的开放式硬件平台(open-source hardware platform),采用Vortex86EX 处理器,提供更快的处理效能及高扩充性,且完全兼容Arduino系列,并可支持x86架构的操作系统及运行以Arduino为基础的系统。
86Duino采用了高性能32位的x86兼容处理器,可以额外安装Windows、Linux 和最流行的32位RTOS O/S,在单一封装内集成了PCIE,DDR3,ROM控制器,xISA,I2C,SPI,IPC(DMA和中断定时器/计数器包括内部外设控制器),网络,FIFO UART,USB2.0和SD/ SATA控制器形成一个系统级芯片(SOC)。
86Duino 提供了一个超完美的解决方案,开放式的硬件与软件,可自行下载电路图,让使用Arduino及嵌入式系统的艺术家、设计师、业余爱好者、任何有兴趣的人,建立打造交互式科技所需的性能。

Technical Specifications
Processor Vortex86EX
Clock Speed 300 MHz
Memory 128MB industrial-grade DDR3 (86Duino One)
1GB industrial-grade DDR3 (86Duino One Plus)
Flash Memory 8MB
Digital I/O Pins 45 (of which 11 provide 32bit PWM output)
Analog Input Pins 7 (11bit)
Communication I2C, SPI, UART, RS485, CAN, LAN
Sound High Definition Audio
Sensor LSM330DLC (6-axis Accelerometer & Gyro)
Operating Voltage 5V
Input Voltage (recommended) 6-24V (内建电源突波及反插保护)
DC Current per I/O Pin 16 mA
DC Current for 3.3V Pin 400 mA

All features and specifications subject to change without notice.


86Duino_ONE-45D86Duino_ONE-top86Duino_ONE-back86Duino_ONE-LINE_topview86Duino-One-Backview86Duino-ONE_pinout_M86Duino-ONE_pinout_M86Duino-ONE_pinout_M


86Duino Motor Shield Demo

Vortex86 mini PCI-E VGA card on 86Duino One

download

  1. Vortex86EX Datasheet V1.4
  2. Circuits Schematics for DM-205 (Vortex86EX SOM-128-EX)
  3. Circuits Schematics for DM-223 (Daughter Board)
  4. BOM/Part List for DM-223 (Daughter Board)
  5. Gerber file for DM-223 (Daughter Board)
