  • 印匠.続 – AUTO Exchange

    印匠 ENJOY AUTO Exchange The 86Duino ENJOY AUTO Exchange is built with CNC machined metallic frame to provide a rigid structure for the printer assembly, which helps minimize vibration and provides a stable environment to deliver optimal print quality. The intuitive 86Duino Enjoy is designed with simple calibration, enabling you to easily enjoy and replicate […]


  • 86Sense – RM320

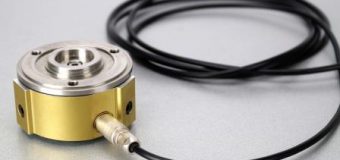

    The 3-axis force torque sensor 三軸力センサー Features ● Robotics ● Biped robot ● Cutting measurement ● Industrial test benches ● Mechanical linkage ● Structure status Main specifications Measuring range Force range Fz ±2000N Moment range Mx, My ±40 N-m Signal noise Force in Z 0.1 N Moment in X, Y 0.005 N-m Data output rate […]


  • SyncAxes 6 – 多軸控制器

    6-Axis closed loop stepper motor controller Features ● 6 Axes stepper motor simultaneously ● Close loop operation ● Selectable microstepping and phase current ● Operating current up to 4.5A ● USB, SD card and LAN ● 12V – 30V voltage range ● 6 x Encoder interface ● 6 x Digital input ● 9 x High-speed […]


  • 86servo

    T120 Features ● 12N-m & 110RPM output ●POSITION, SPEED and CURRENT control with/without trajectory tracking ●16,384PPR absolute + 904K PPR relative encoder ●32bit multi turn control range ●Dual port 6Mbps RS-485 with Modbus ●EtherCAT module available ●44 (W) x 44 (H) x 60 (L) mm Main specifications Processor DMP Vortex86EX2 533MHz+300MHz 32-bit x86 Position Sensor […]



  • About 印匠 ENJOY

    印匠 ENJOY The 86Duino Enjoy is built with CNC machined metallic frame to provide a rigid structure for the printer assembly, which helps minimize vibration and provides a stable environment to deliver optimal print quality. The intuitive 86Duino Enjoy is designed with simple calibration, enabling you to easily enjoy and replicate your creation with minimal […]


  • 86Duino ONE

    Overview ● Vortex86EX Processor 300MHz 32-bit x86 128MB/1GB DDR3 LAN USB 2.0 Micro-SD ● Open-Source Hardware ● Support DOS, Windows, Linux ● Arduino-Compatible IDE 86Diuno(ドューノ)はVortex8EX SoCを搭載し、ソフトウェアを統合して取扱いが簡単なオープンソース組込みプラットフォームです。Arduino互換の86DuinoはオリジナルのArduino同様に数々のx86系OSをサポート致します。 86Duinoは32ビットx86系CPU完全互換でWindowsOS、Lunuxその他最も有名な32ビットRTOSに対応、ハードウェアはPCIEバス、DDR3、ROMコントローラ、xISA、I2C、SPI、IPC(Internal Peripheral Controllers with DMA and interrupt timer/counter included)、Fast Ethernet、FIFO UART、USB2.0そしてSD/SATAコントローラをSoC(System-on-a-chip)として一つのチップに統合した高機能な組込みプラットフォームです。 86DuinoはArdunoや組込みシステムに要求される機能に、理想的な解決策を提供致します。 Technical Specifications Processor Vortex86EX Clock Speed 300 MHz Memory 128MB industrial-grade DDR3 (86Duino One)1GB industrial-grade DDR3 (86Duino […]


  • 86Duino ZERO

    Overview ● Vortex86EX Processor 300MHz 32-bit x86 128MB/1GB DDR3 LAN USB 2.0 Micro-SD ● Open-Source Hardware ● Support DOS, Windows, Linux ● Arduino-Compatible IDE ● Arduino “Leonardo” form factor 86Diuno (ドューノ) はVortex8EX SoCを搭載し、ソフトウェアを統合して取扱いが簡単なオープンソース組込みプラットフォームです。Arduino互換の86DuinoはオリジナルのArduino同様に数々のx86系OSをサポート致します。 86Duinoは32ビットx86系CPU完全互換でWindowsOS、Linuxその他最も有名な32ビットRTOSに対応、ハードウェアはPCIEバス、DDR3、ROMコントローラ、xISA、I2C、SPI、IPC (Internal Peripheral Controllers with DMA and interrupt timer/counter included)、Fast Ethernet、FIFO UART、USB2.0そしてSD/SATAコントローラをSoC (System-on-a-chip) として一つのチップに統合した高機能な組込みプラットフォームです。 86DuinoはArdunoや組込みシステムに要求される機能に、理想的な解決策を提供致します。 Technical Specifications Processor Vortex86EX Clock Speed 300 MHz […]


  • 86Duino EduCake

    Overview ● Vortex86EX Processor 300MHz 32-bit x86 128MB DDR3 LAN USB 2.0 Micro-SD ● Open-Source Hardware ● Support DOS, Windows, Linux ● Arduino-Compatible IDE EduCake is designed to be compatible with Arduino series. It is an all-in-one design with an integrated bread board. Many electronic components, sensors and accessories can be easily connected or replaced […]


  • BOM/Part List for DM-220 (Bread Board)

    BOM/Part List for DM-220 (Bread Board)
