86servo

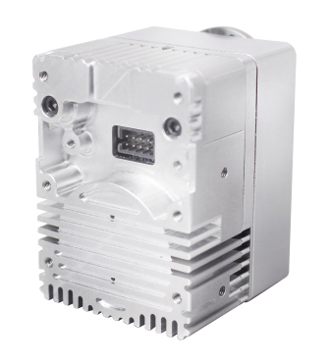

86SERVO T120 is a high-performance intelligent servo motor composed of a controller, sensor, gearbox, servo motor, and controller. The gearbox reduces the motor’s output speed and increases torque, making it suitable for applications requiring high torque at low speeds. The servo motor has a high power density and precise position control capability, making it suitable for applications requiring high-precision motion control. The controller receives feedback information from sensors, calculates control strategies, and sends commands to the servo motor. Integrating these components enables the servo system to provide high-performance and precise motion control, widely used in industrial automation, robotics, printing, packaging, and other fields.
Features
Main specifications
| Processor | DMP Vortex86EX2 533MHz+300MHz 32-bit x86 |
| Position Sensor | Contactless absolute encoder (16,384PPR) Optical encoder (904,396PPR) |
| Communication | RS485 x 2 ports, 6Mbps |
| Gear Box Backlash | <2 arcmin (0.033°) |
| Command Protocol | Modbus RTU / EtherCAT(optional) |
| Weight | 250g |
| Dimension | 44(W) x 44(H) x 60(L)mm |
| Rotational Range | 0°~ 360°, endless turn |
| Motor | DMP high performance slotless brushless DC motor (240W) |
| Gear Reduction Ratio | 110.4:1 |
| Peak Torque | 110 rpm @24V |
| Operating Temperature | -40°C ~ +85°C |
| Standby Current | 50mA |
| Voltage | Recommended DC 24V |
| Material | Metal gear, aluminum alloy case |
All features and specifications subject to change without notice.
