86Duino ZERO

Overview

● Vortex86EX Processor
300MHz 32-bit x86
128MB/1GB DDR3
LAN
USB 2.0
Micro-SD
● Open-Source Hardware
● Support DOS, Windows, Linux
● Arduino-Compatible IDE
● Arduino “Leonardo” form factor

86Duino is an open-source embedded platform based on Vortex86EX SoC, easy-to-use hardware and software integrated. This Arduino-compatible board can support many x86 O/S as well as those running on the original Arduino base system.

The 86Duino is a high performance and fully static 32-bit x86 processor board compatible with Windows OS, Linux and most popular 32-bit RTOS. It integrates PCIE bus, DDR3, ROM controller, xISA, I2C, SPI, IPC (Internal Peripheral Controllers with DMA and interrupt timer/counter included), Fast Ethernet, FIFO UART, USB2.0 and SD/SATA controller within a single package to form a system-on-a-chip (SOC).

86Duino provides an ideal solution for the Arduino and embedded system with desired performance.


Technical Specifications
Processor Vortex86EX
Clock Speed 300 MHz
Memory 128MB industrial-grade DDR3 (86Duino Zero) 1GB industrial-grade DDR3 (86Duino Zero Plus)
Flash Memory 8MB
Digital I/O Pins 17 (of which 7 provide 32bit PWM output)
Analog Input Pins 6 (11bit)
Operating Voltage 5V
Input Voltage (recommended) 7-12V
DC Current per I/O Pin 16 mA
DC Current for 3.3V Pin 400 mA

All features and specifications subject to change without notice.

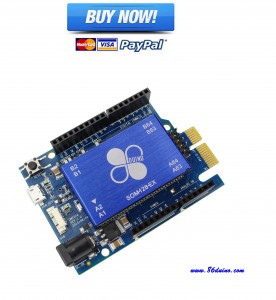

86Duino_ZERO-45D   86Duino_ZERO-top  86Duino_ZERO-back   86Duino_ZERO-topview    86Duino_Zero-backview     86Duino-ZERO_Pinout_M     86Duino-ZERO_Pinout_M


download

  1. Vortex86EX Datasheet V1.4
  2. Circuits Schematics for DM-205 (Vortex86EX SOM-128-EX)
  3. Circuits Schematics for DM-222 (Daughter Board)
  4. BOM/Part List for DM-222 (Daughter Board)
  5. Gerber file for DM-222 (Daughter Board)
  6. 86DUINO BOARD  DataSheet
  7. 86Duino ZERO_User Manual
